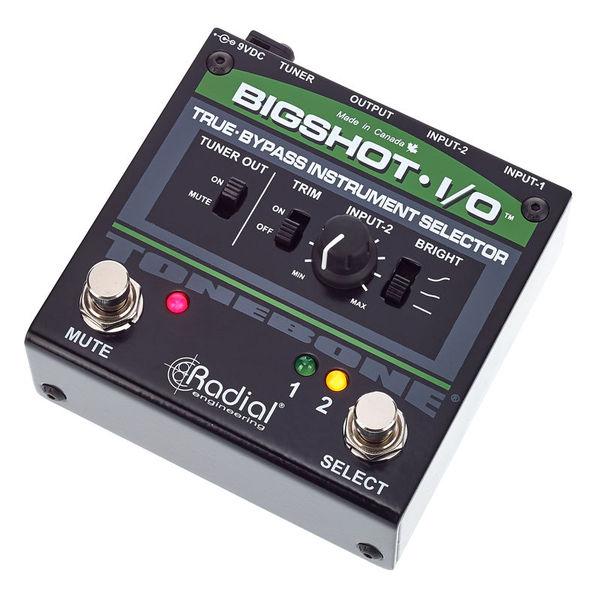

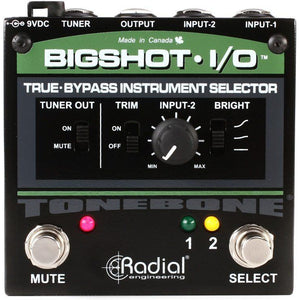

Radial Big Shot i/o Instrument Selector

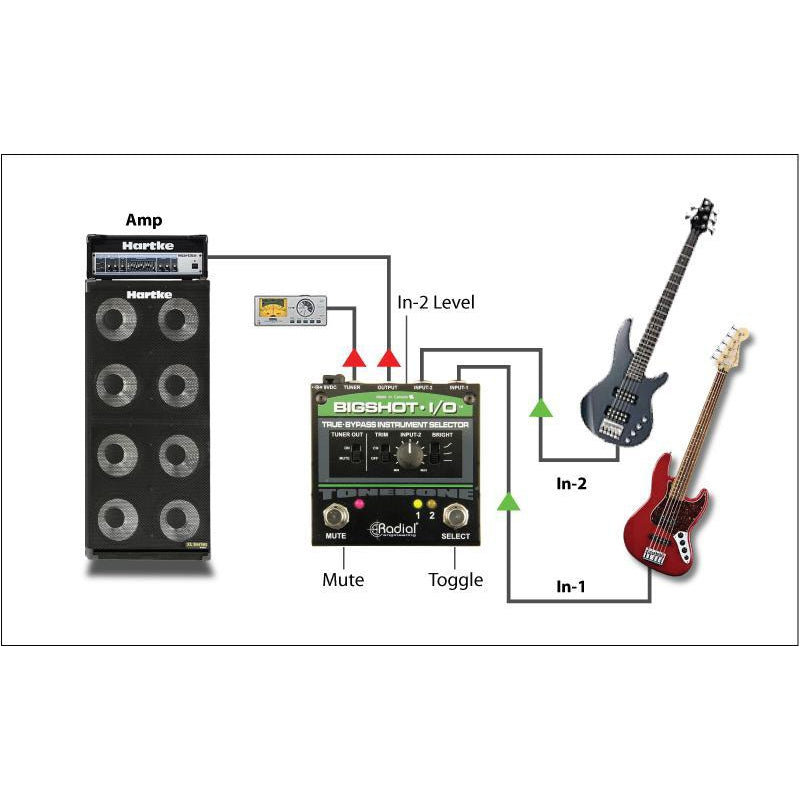

The Radial BigShot i/o is an easy to use instrument selector that lets you quickly transition between any two instruments and send the output signal to your amp. Because the i/o is 100% true-bypass, it addresses the needs of the most demanding purist.
To enhance functionality, input-B is equipped with a volume control that lets you reduce the input sensitivity of the louder instrument so that the two instrument output levels match. Simply connect the louder of your two instruments to input-B and set the level to suit. When passive instruments are used, a unique 3-position 'bright switch' lets you compensate for high frequency loss. The BigShot i/o is also equipped with a separate tuner output. With a simple foot stomp, the sound going to the amp is muted and diverted to the tuner for quiet on-stage adjustments. Super-bright LED indicators provide instant status for the input select and mute functions.
Compact, extremely rugged and 100% passive, the BigShot i/o does not require any powering to make it work other than for the LEDs. This means that if you forget your power supply or simply do not want to use it, the audio will pass without the LED indicators. This makes it ideal for all types of pedalboards and any size setup!
The BigShot i/o... the perfect instrument selector for stage use.
