EBS Premium Gold Flat Patch Cables

EBS Premium Gold Flat Patch Cables

GET 20%  Off on orders of 5 or more EBS Patch Cables. Just enter EBS20 into the Discount Code field in the checkout and it will reduce you cost by 20%. Please Note, this discount is only available on our website, it can not be used if ordering on Ebay.

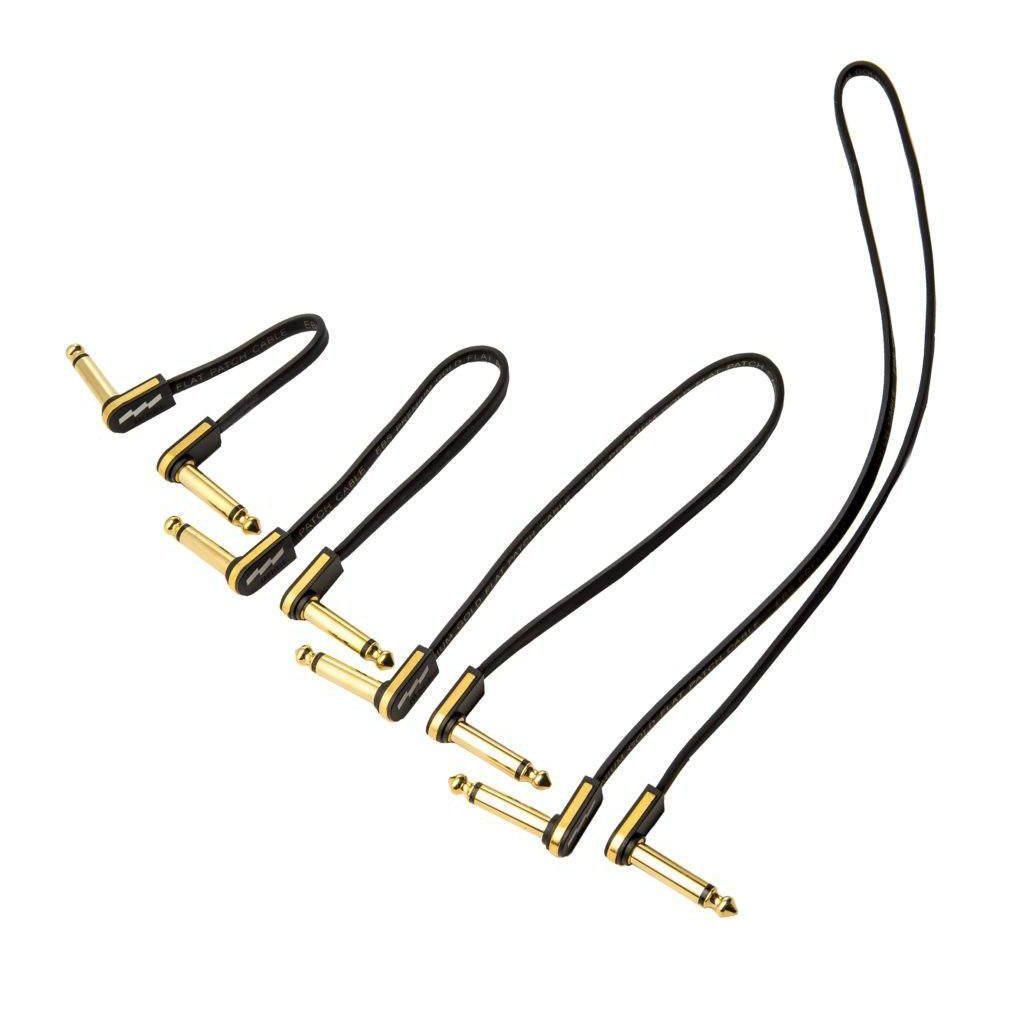

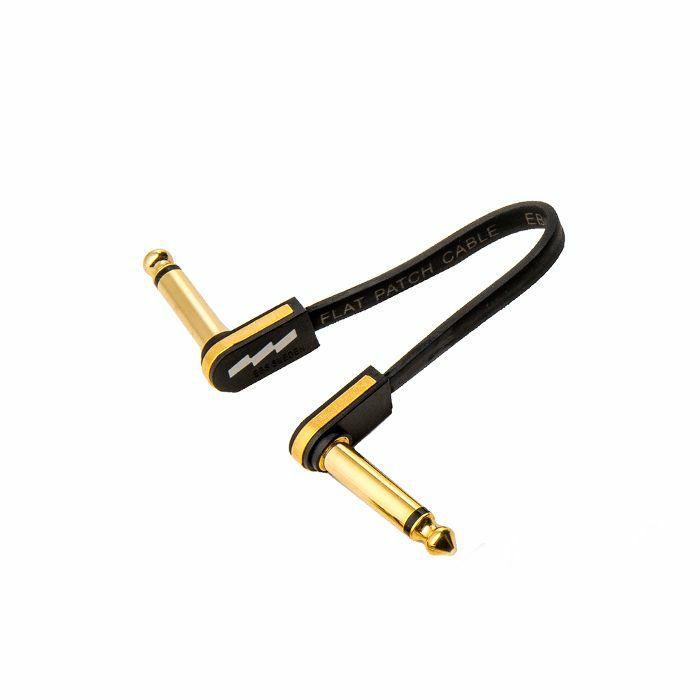

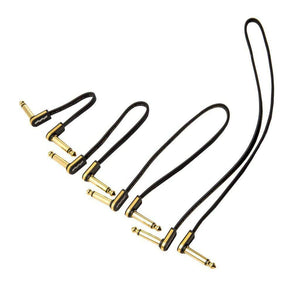

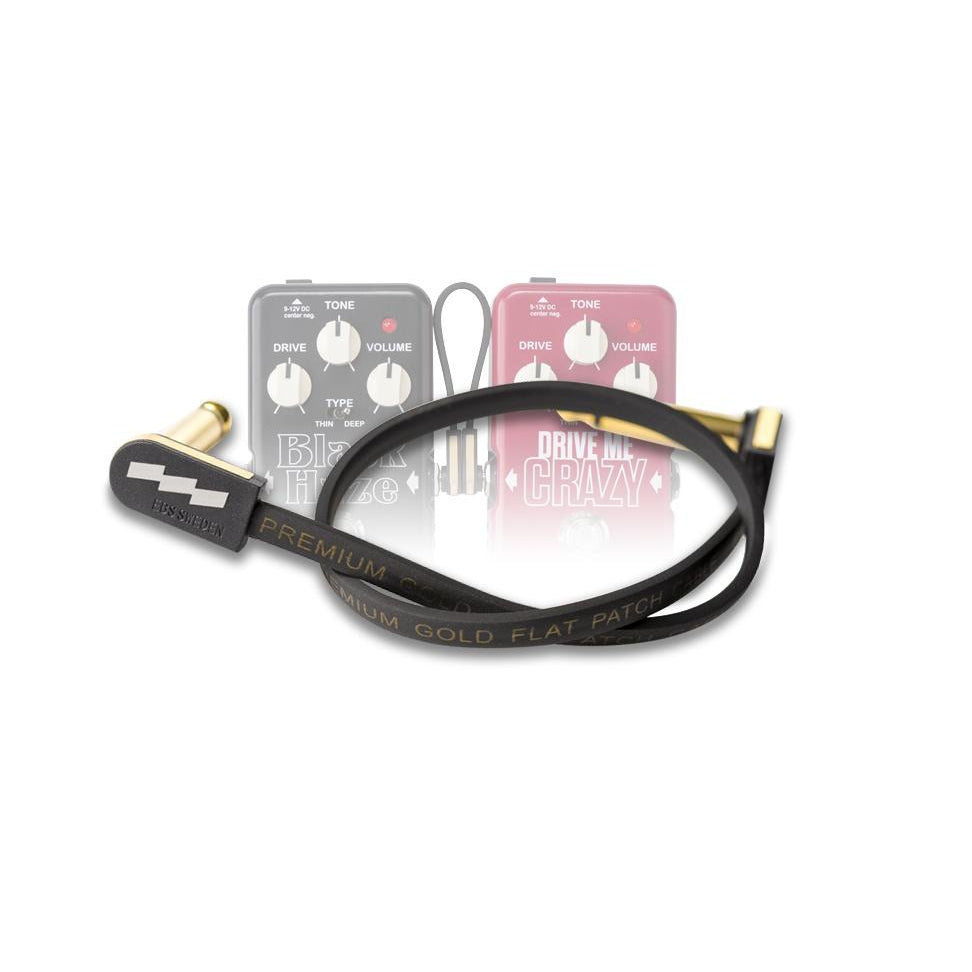

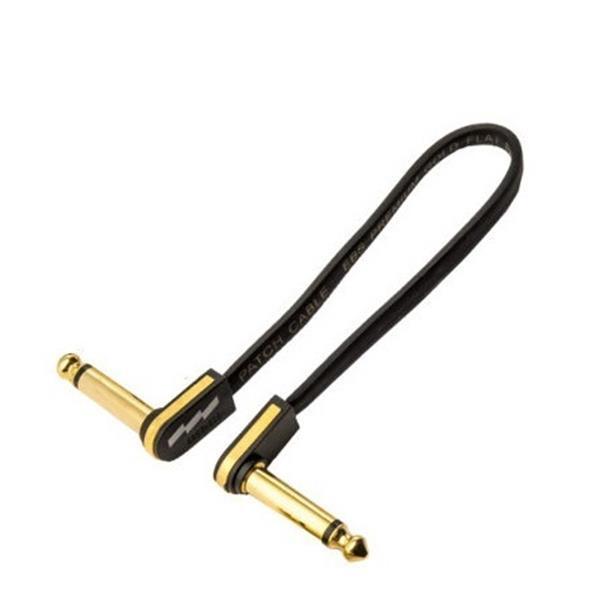

The Premium Gold Flat Patch Cable is an original design by EBS. Using premium PCF Cable and gold plated diecast ends, these patch cables are essential for anyone trying to minimise space wastage on their pedal board. Superb signal quality and brilliantly designed



Contact housing made of 24 Carat Gold Plated Die Cast welded Zink. 24 Carat Gold Plated 1/4" Contacts. Ultra Compact and double shielded Flat Patch Cable. Probably the smallest and most compact patch cables available in the World right now. Very low resistance and capacitance keeps your sound uncolored without signal loss. Premium Quality at a very affordable price! The Premium Gold is even more compact than the EBS PCF cable, and also with improved performance.
Specs
  • Contact house: 24 Carat Gold Plated
  • Double Shield: Conductive PVC and Copper shield protect effectively from both LF and HF interferences.
  • Conductor: Flexible copper conductor low voltage audio signal system
  • Operating Temperature: -15ºC to +70°C
  • Outer Insulation: PVC (Polyvinyl Chloride)
  • Signal Copper Cores: 20 x 0,12mm
  • Signal Insulation:  PE (polyethylene)
  • Twisted Copper shield:  45 x 0,12mm
  • Capacitance Cond./Shield: < 10 pF/decimeters
  • Conductor Resistance: < 10 mOhm/decimeters
  • Dimensions:  5,3 x 2,5 mm (rectangular cable), 22,0 x 11,5 x 5,0 mm (contact house)
