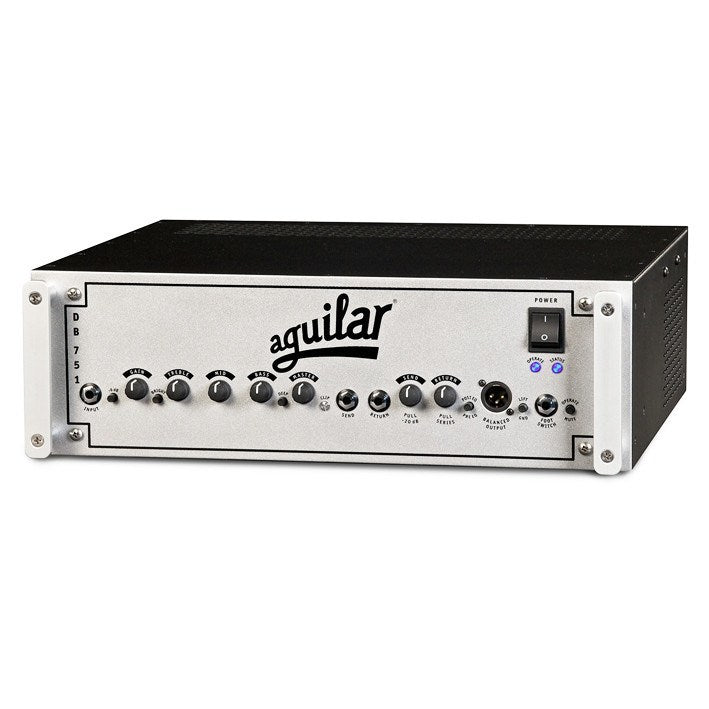

Aguilar DB751 Bass Amp


DB751, 700 watts of unadulterated power. Used by some of the best bass players in the world, the DB751 delivers incredibly power and headroom. You will simply sound better with one of these sitting behind you.

Self-Diagnostic Protection Circuit and Thermal Overload Protection Circuit (both with LED indicators)

Power Output: 975 watts @ 2 ohms, 750 watts @ 4 ohms, 400 watts @ 8 ohms

Preamp Section:Three 12AX7

Power Section:12 complimentary lateral MOSFETs

Transformer:Custom Aguilar toroidal power transformer

EQ Section:passive tone stack with active midrange element, bass: +12 / -12 @ 40Hz; midrange: +12 / -12 @ 750Hz; treb: +12 / -7 @ 4kHz

Deep Switch:Adds5 dBof broadband boost at 30 Hz

Bright Switch:Adds 5 dB of broadband boostat 5-7 kHz

Effects Loop:Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation

Inputs:One 1/4" input jack with an active/passive switch

Outputs:Two Neutrik Speakon speaker outputs, Jensen XLR balanced output (with pre/post EQ and ground lift switch) and Tuner out.

Cooling:High quality whisper fans with thermal speed control

Dimensions:17" W x 14" D x 5.25" H

Rack Size:Three Spaces, Includes detachable rack ears

Weight:19.09 kg

Includes:Rack Ears

Optional: FS-1 Mute Switch, Head Cases in DB Colors
